Legend:
(F) - available for futures.
(S) - available for shares.
Not Specified - Available for Futures and Shares.
Top Button Panel items description
Aggregate - activates the mode of the aggregated tape of trades, changing the available selection of control fields in the Control Panel to: Volume Filter, Merge by, Date, Time From, Time To, Tick. For details, see the section describing elements in the Control Panel.
Pause - activation of the pause mode, in which the transaction tape stops receiving data, freezing the current state.
Setup - opens a menu of available settings.
Window - shortcut menu to all open windows.
Apply - applying settings and loading data.
Control Panel elements description
When Aggregate mode is deactivated:
Ticker - ticker input field.
Contract (F) - field for selecting a contract of the entered ticker.
Volume Filter - field for filtering the minimum displayed volume.
Less Volume Filter - field for filtering the maximum displayed volume.
Spread Filter - field for filtering the minimum difference between Bid and Ask.
When Aggregate mode is activated:
Ticker - ticker input field.
Contract (F) - field for selecting a contract of the entered ticker.
Volume Filter - field for filtering the minimum displayed volume.
Merge by - field for setting trades merging.
price - trades is aggregated by price.
order - trades is combined by orders.
Date - select the date for displaying data.
Time From - displays data from the specified time.
Time To - displays data up to the specified time.
Tick - a field for selecting the size of the minimum price tick for displaying data.
Setup items description
Limit - setting filtering of displayed data.
With deactivated Aggregate mode:
Volume - filtering values by the volume of transactions.
Spread - filtering values by spread (the difference between Bid and Ask).
With Aggregate Mode Activated
Volume - filtering values by the volume of transactions.
Delta,% - filtering values by delta in percent.
Trades - filtering values by the number of trades.
Max Trade - filtering values by the maximum trade size.
Avg Trade - filtering values for the average trade size.
Hidden Volume (F) - filtering values by hidden volume.
Symbol Lookup - opens the instrument search window and adds them to the field Ticker.
Stop Local Alerts - disable notifications in the window.
Desktop - call the Desktop window, which allows you to configure switching between sets of windows.
Clone Window - creates a complete copy of the current window in a new window.
Change columns - window for configuring displayed columns.
Delta Tick Direct - displays the Row column.
Delta Aggressor - displays the Row column.
Bid - displays the Row column.
Ask - displays the Row column.
Bid-Ask Size - displays the Row column.
Spread, pips - displays the Row column.
Open Interest (FORTS only) - Displays the Row column.
Time - displays the Row column.
Speed - displays the Row column.
Buy / Sell Balance - displays the Row column.
Row Number - Displays the Row column.
Settings - the settings window for this window.
Stay On Top - enable or disable displaying windows on top of other windows.
Hide Control Panel - hide or show Control Panel.
Independent Mode - activates the window mode with independent settings, due to which this window can be set to other settings, filters and displayed levels. When you close the window or turn off this mode, all settings will be lost.

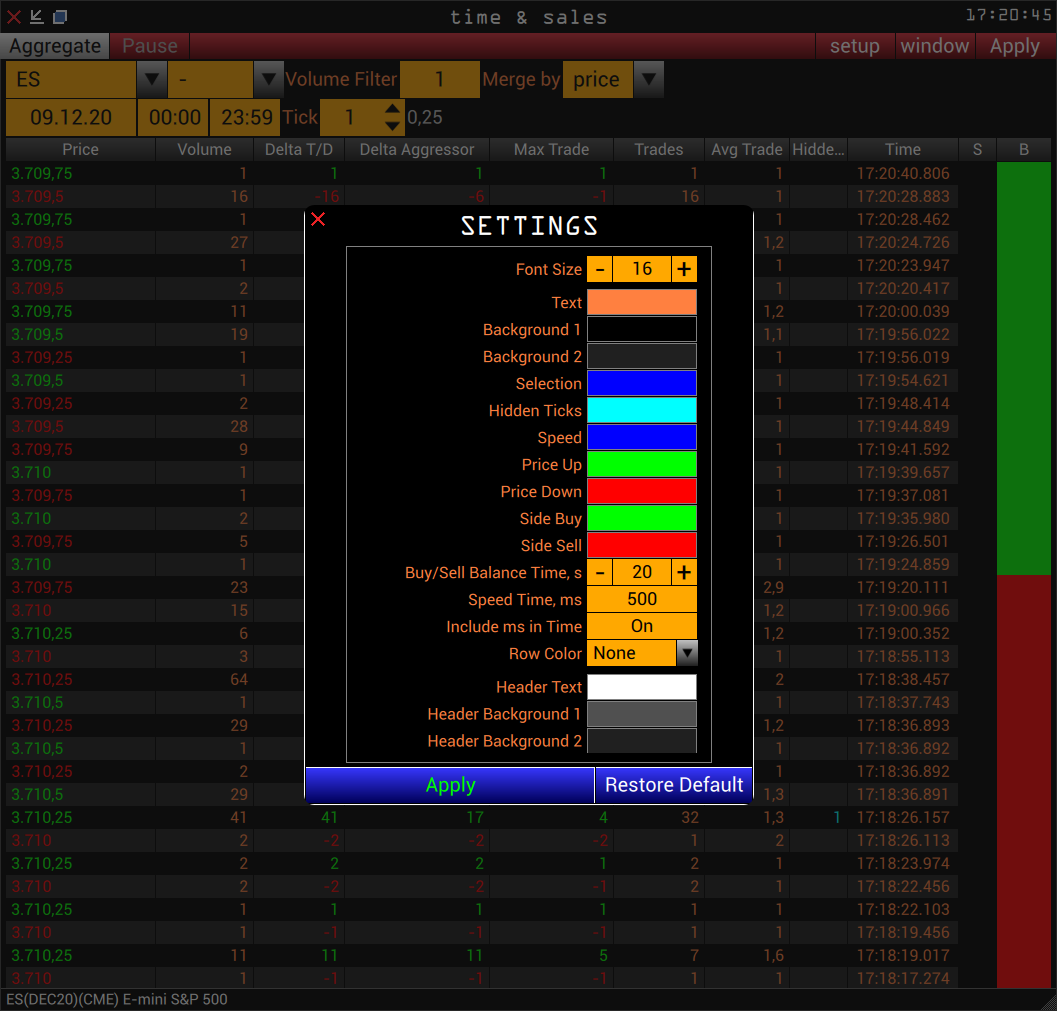

Settings description (setup - Settings)
Font Size - select the font size.
Text - select the color of text values.
Background 1 - select a background color for the first separators.
Background 2 - select a background color for the second separators.
Selection - selection of the color of the selected row.
Hidden Ticks - select the color of hidden ticks.
Speed - select the color of the order flow rate indication column.
Price Up - select a color for the price column if the price is higher than the previous one.
Price Down - select a color for the price column if the price is lower than the previous one.
Side Buy - the choice of color to display in all columns of the values associated with the purchase.
Side Sell - the choice of color to display in all columns of values related to the sell.
Buy / Sell Balance Time, s - display of the total delta for the specified number of seconds.
Speed Time, ms - data refresh time in the window, in milliseconds.
Include ms in Time - display the value of milliseconds in the Time column.
Row Color - highlighting the entire row with color to display the direction of the trade.
None - do not highlight the line.
Tick Direction - highlight the line with color in the direction of the trade.
Aggressor - highlight the line with the color of the initiator of the trade.
Header Text - select the color of the column names.
Header Background 1 - Selects the first color for the gradient of the column cells.
Header Background 2 - Selects the second color for the gradient of the column cells.
Row Number - Selects the color of the column # values that indicate the row number.
Apply - apply settings.
Restore Default - reset all settings to default values.
Time & Sales description
General columns:
Price - the column showing the price.
Volume - column showing volume.
Time - a column showing the time of the trade.
Open Interest (FORTS only) - a column showing open interest.
S (Speed)- visual display of the order flow rate.
B (Sell-Buy Balance)- visual display of the current supply and demand balance.
With deactivated Aggregate mode:
Side T / D (Tick Direct) - a column showing the side of the trade in the direction of the trade.
Side Aggressor - a column showing the side of the trade by the initiator of the trade.
Spread - a column showing the difference between Ask and Bid.
Mkt Center (S) - a column showing the source of the trade.
When Aggregate mode is activated:
Delta T / D (Tick Direct)- a column with delta values calculated according to the Trade Direct principle (trade direction).
Delta Aggressor - a column with delta values calculated according to the Aggressor principle (initiator of the transaction).
Max Trade - a column with the values of the maximum trade size.
Trades - a column with the values of the number of trades.
Avg Trade - a column with values of the average trade size.
Hidden Volume (F) - a column with hidden volume values.
