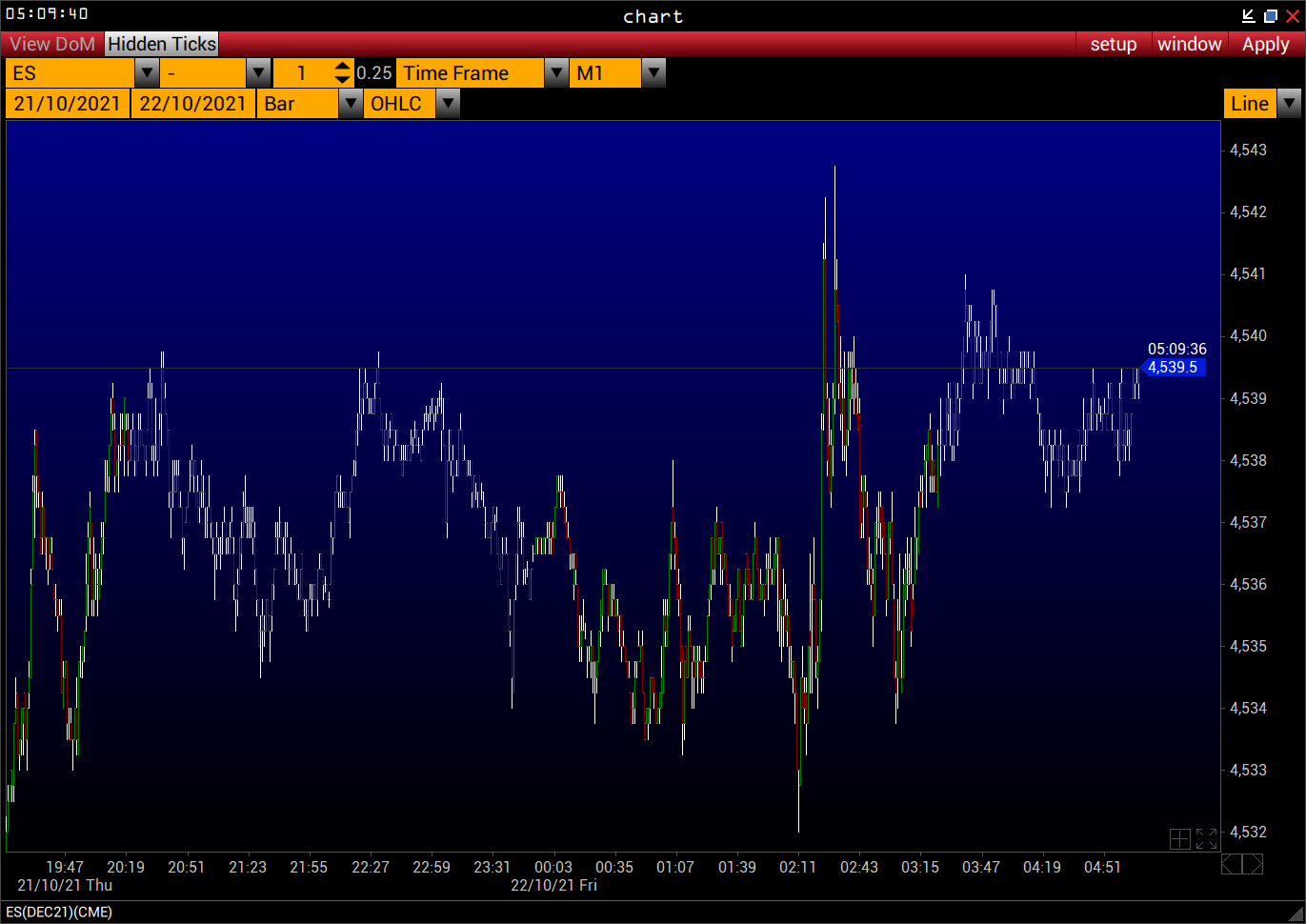

Chart Module Description

The Chart module is a versatile module for quickly opening the type of chart you need.

Key:
(F) - available for futures.
(S) - available for stocks.

If no indication, it is available for both futures and stocks.

Description of Elements in the Top Button Panel

View DOM (F) - Displays the DOM (order book) on the chart.

Hidden Ticks - Displays hidden ticks on the chart.

Setup - Opens the menu for available settings.

Window - Quick access to all open windows.

Apply - Applies settings and loads data to display the chart.

Description of Elements in the Control Panel

Ticker - Input field for the ticker symbol.

Contract (F) - Field to select the contract for the entered ticker.

Price Tick Size - Field to select the price tick size.

Chart Calculation Type - The type of chart calculation.

Additional Field - This field allows you to customize how each bar of the chart is constructed based on the selected Chart Calculation Type, such as time frame or tick size.

Chart From Date - Start date of the chart.

Chart To Date - End date of the chart.

Chart Type - The display type of the chart, available for all chart types except Tick Chart.

Description of Elements in Setup

Symbol Lookup - Opens a window to search for instruments and add them to the Ticker field.

Stop Local Alerts - Disables alerts from this window.

Desktop - Opens the Desktop window to configure switching between sets of windows. More information here.

Clone Window - Creates a full copy of the current window in a new one.

Lines - Manages lines on the chart.

Delta Type - Selects the delta type. More information here.

Contract Spec - Displays the specification of the selected instrument.

Hotkey - Opens the hotkey settings window.

Settings - Opens the settings window for this chart.

Hide Control Panel - Hides or shows the control panel.

Stay On Top - Keeps the window above all other windows.

Independent Mode - Switches the module to Independent mode. More information here.

Market Replay - Switches the module to Market Replay mode. More information here.
